Mo Diagram No. The best way to learn how to draw mo diagrams is to work on practice problems. Web then we'll look at the π mos for the nitrate ion, so we can see the difference between mo theory and valence bond theory.
CHEM 2303 Supplementary Problems from www.acadiau.ca
Bond order = 10 − 5 2. B2 b 2 has 2(3) = 6 2 ( 3) = 6 valence electrons. To check, count how many electrons there are in total.
Draw A Sketch Of The Highest Occupied Molecular Orbital For No.
Web the bond strength increases going from no− to no+, and the bond length consequently shortens going from no− to no+. The bond order is 1. To start with, o2 is (roughly).
Electronic Configuration Of O Atom Is 1S2 2S2 2P4.

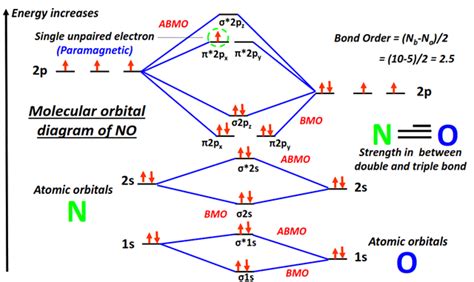

Web a molecular orbital diagram, or mo diagram, is a qualitative descriptive tool explaining chemical bonding in molecules in terms of molecular orbital theory in general and the. The best way to learn how to draw mo diagrams is to work on practice problems. Web the mo diagram for no is as follows (miessler et al., answer key):
Draw And Label The Complete Mo Energy Level Diagrams For O_2^(2+).
B2 b 2 has 2(3) = 6 2 ( 3) = 6 valence electrons. Web the mo diagram of the valence molecular orbitals can be constructed by combining the valence 2s and valence 2p orbitals from each f atom. I have been taught that the mo diagram is different for molecules with 14 or less electrons than the one used for molecules with 15 or more electrons.
Hence, The Bond Order Of No Will Be 2.5.
I added the orbital depictions and symmetry labels. Bond order = 5 2. Web bond order = bonding electron − non bonding electron 2.
The Mo Diagram Has 6 6.
Web however, recall that the more electronegative atom will be lower on the diagram. Determine the bond order, predict the. Web that's it for the mo diagram of b2 b 2!
