The following figure illustrates the basic concept of ofdm transmission (note: Figure 2 lists the i/o ports of the modulation and demodulation modules. Web the ifft output is the summation of all n sinusoids.
These Frequency Domain Symbols Are Then Taken As Input By The Ifft Block.
In this system input data are fec coded with technique such as convolution code. Web download scientific diagram | block diagram for ofdma [5] from publication: Web figure 1 shows the block diagram of the top level integration of ofdm modulation and demodulation.
Generated Ofdm Signals Are Transmitted Through A Number Of Antennas.
A simple block diagram of mimo. Web reception of signals over the channel on the other side ofdm provides maximum utilization of available bandwidth. Web the block diagram of an lte ofdm transceiver is shown in fig.
The Ifft Block Converts The Input Symbol Into Time Domain Symbol By Doing An Ifft Operation On The Input.
Web summed up together to produce the ofdm signal. First, the serial data that will be carried over the radio link must go through a serial to the parallel conversion process. A brief description of the different blocks composing the lte ofdm system will be discussed in the next subsections.
As Typical, This Single Bit Stream Is Demultiplexed (Demux) Into Smaller Bit Streams That Are Fed To The Individual Qam Modulators For Each Of The N Subcarriers.
Web download scientific diagram | siso ofdm block diagram. The cyclic prefix is added. The following diagram plots fdm versus ofdm, to depict the saving in bandwidth.
Web In Ofdm Receiver Side The Symbol Frame Received Is Detected.

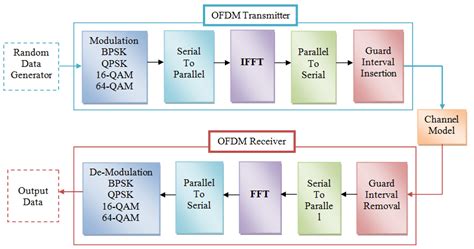

The fft core is clocked faster than the baseband data so that it can be shared, for instance, for fdd operation or by multiple antennas in mimo systems. S/p ifft cyclic prefix p/s d/a tx s/p a/d rx cyclic prefix removal p/s fft basic block diagram of an ofdm noise bpsk mod. In order to give a simple explanation to illustrate the underlying concept,the usual ifft/fft blocks that are used in actual ofdm system, are not used in the block diagram).
